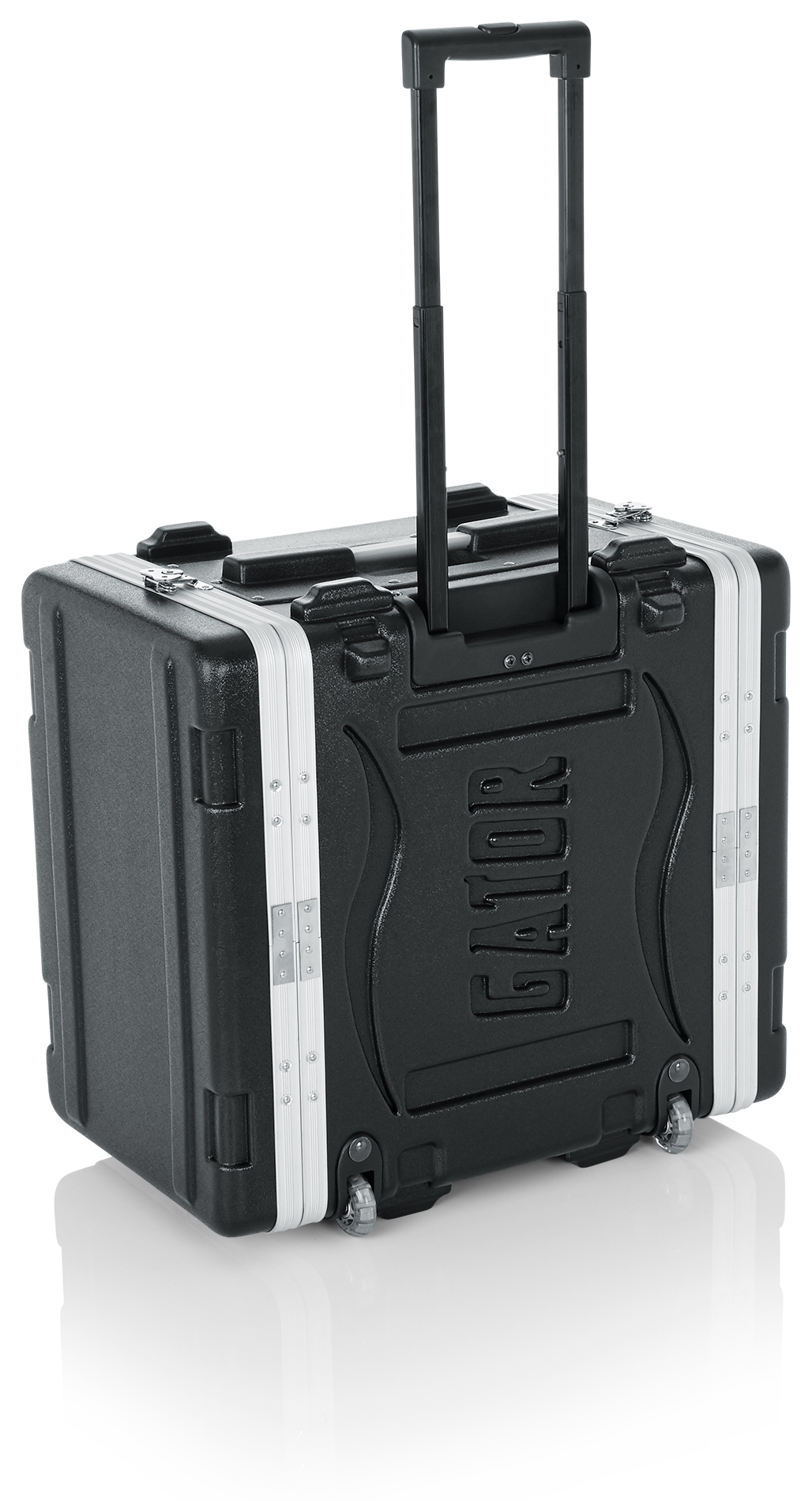

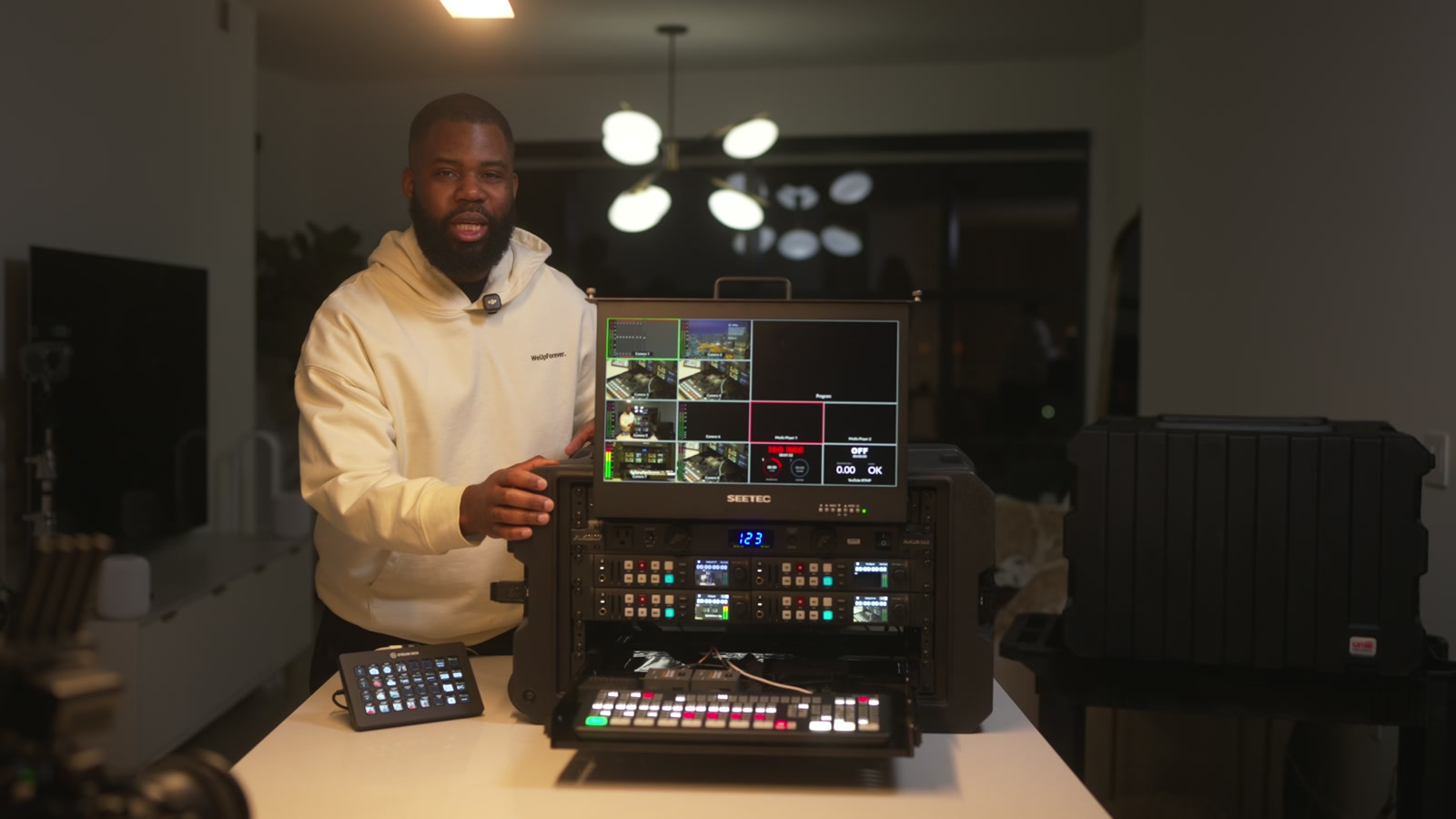

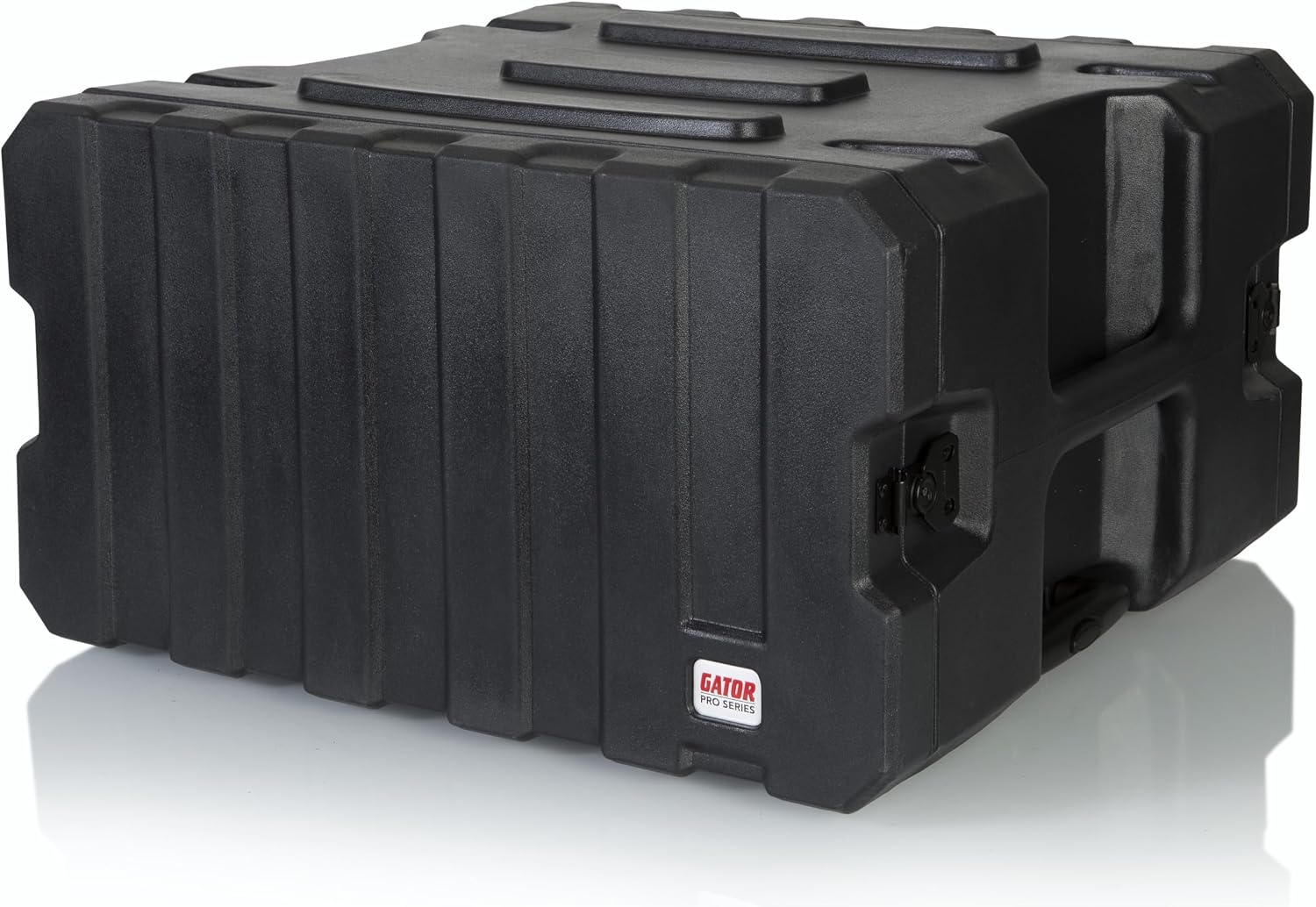

Gator G-PROR-6U-19 rolling 6U rack
The wheeled pull-handle case that protects the build and lets me load in fast without carrying a stack of loose gear.
Everything inside
The complete gear list.

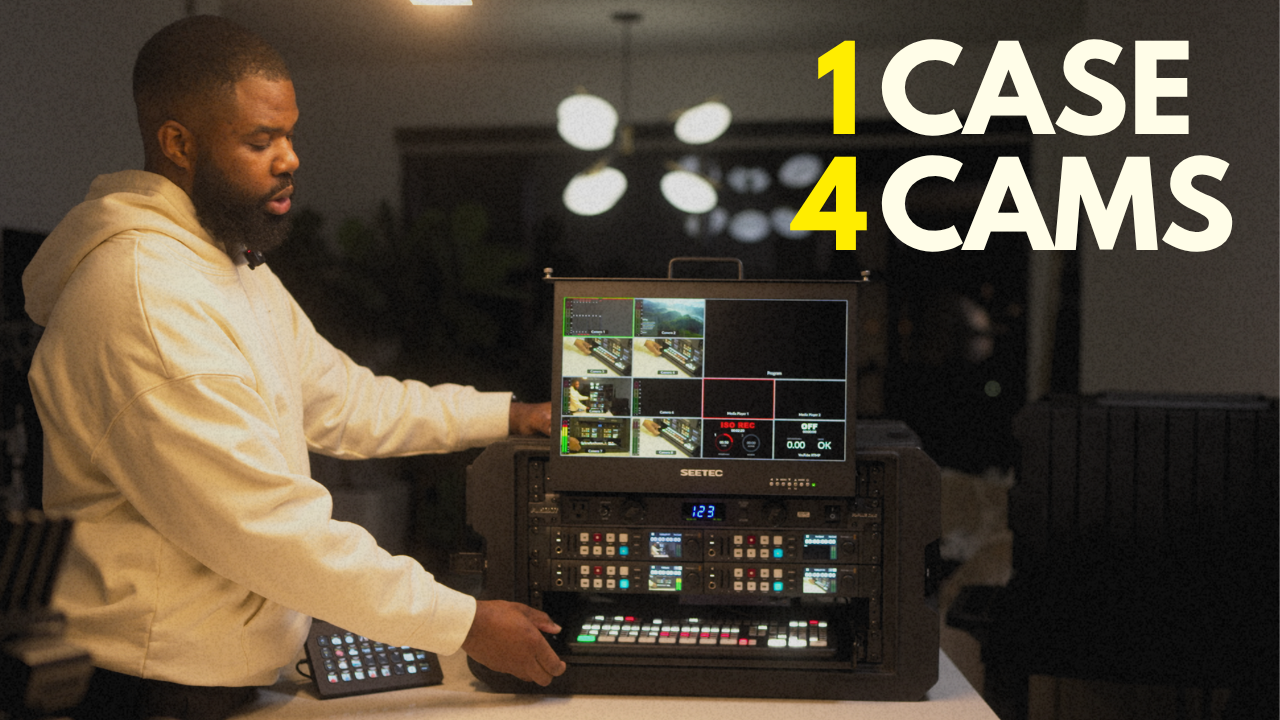

This follows the video from front to back. Products marked Planned are upgrade candidates, not gear already inside the rack. If I did not name an exact model, I say that clearly.
Core rack
Case, switching, recording, power and monitoring

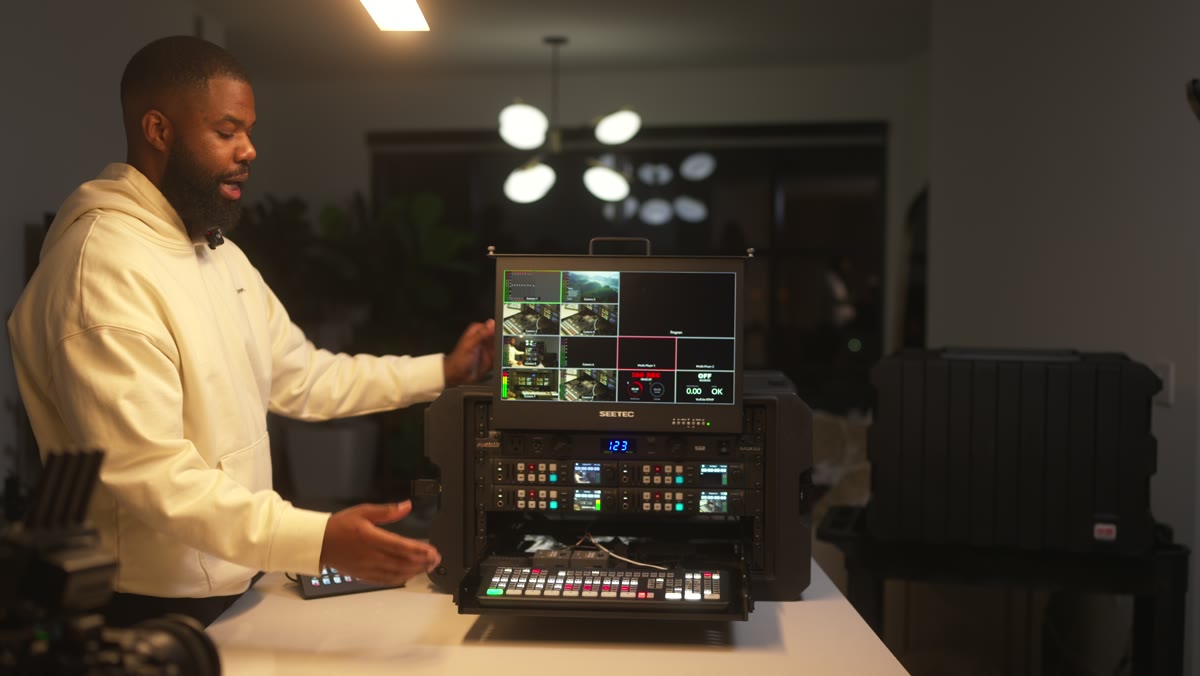

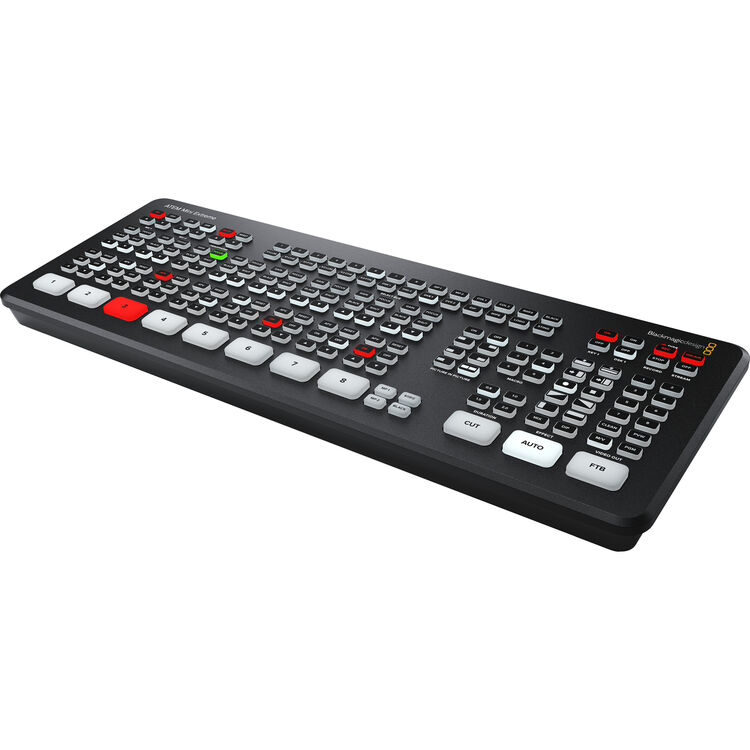

Blackmagic ATEM Mini Extreme ISO
Eight HDMI inputs, a fast live-switching surface and an ISO safety recording. Everything in the rack routes back to it.

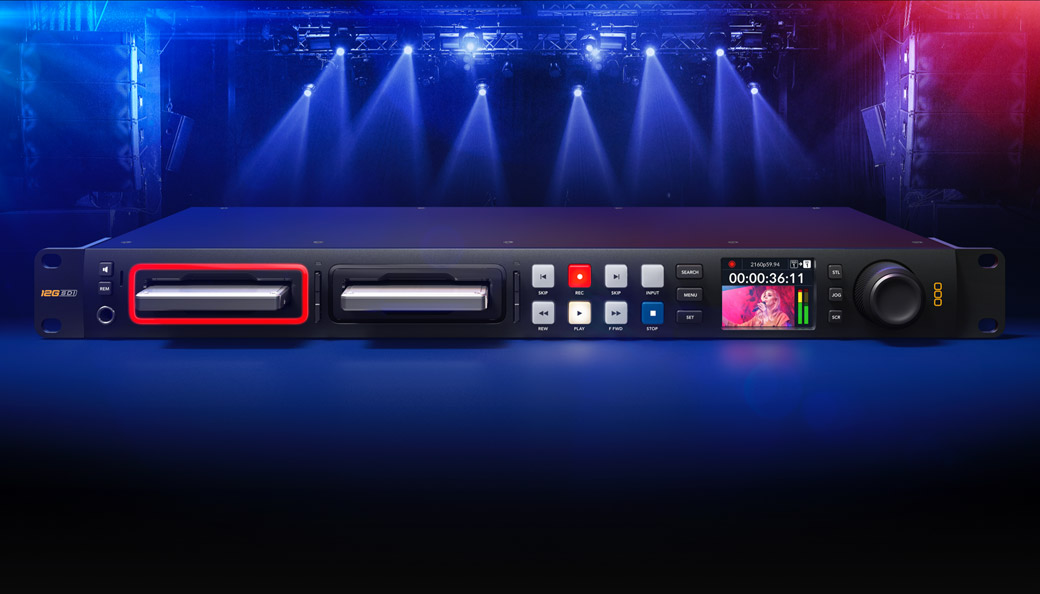

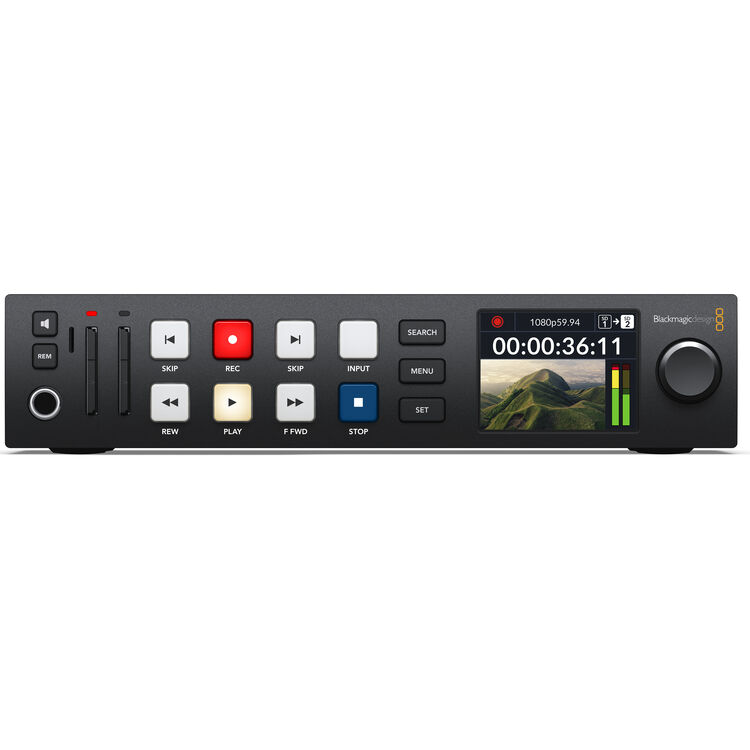

HyperDeck Studio HD Plus
Four decks can record four separate cameras. One deck can switch to key-and-fill playback when every camera ISO is not needed.

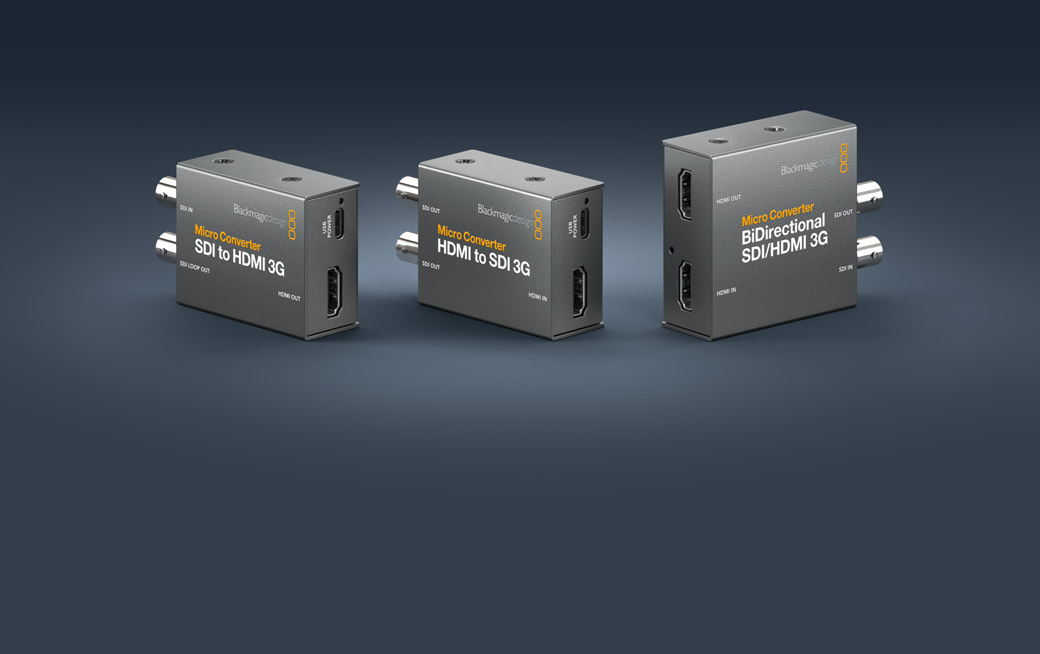

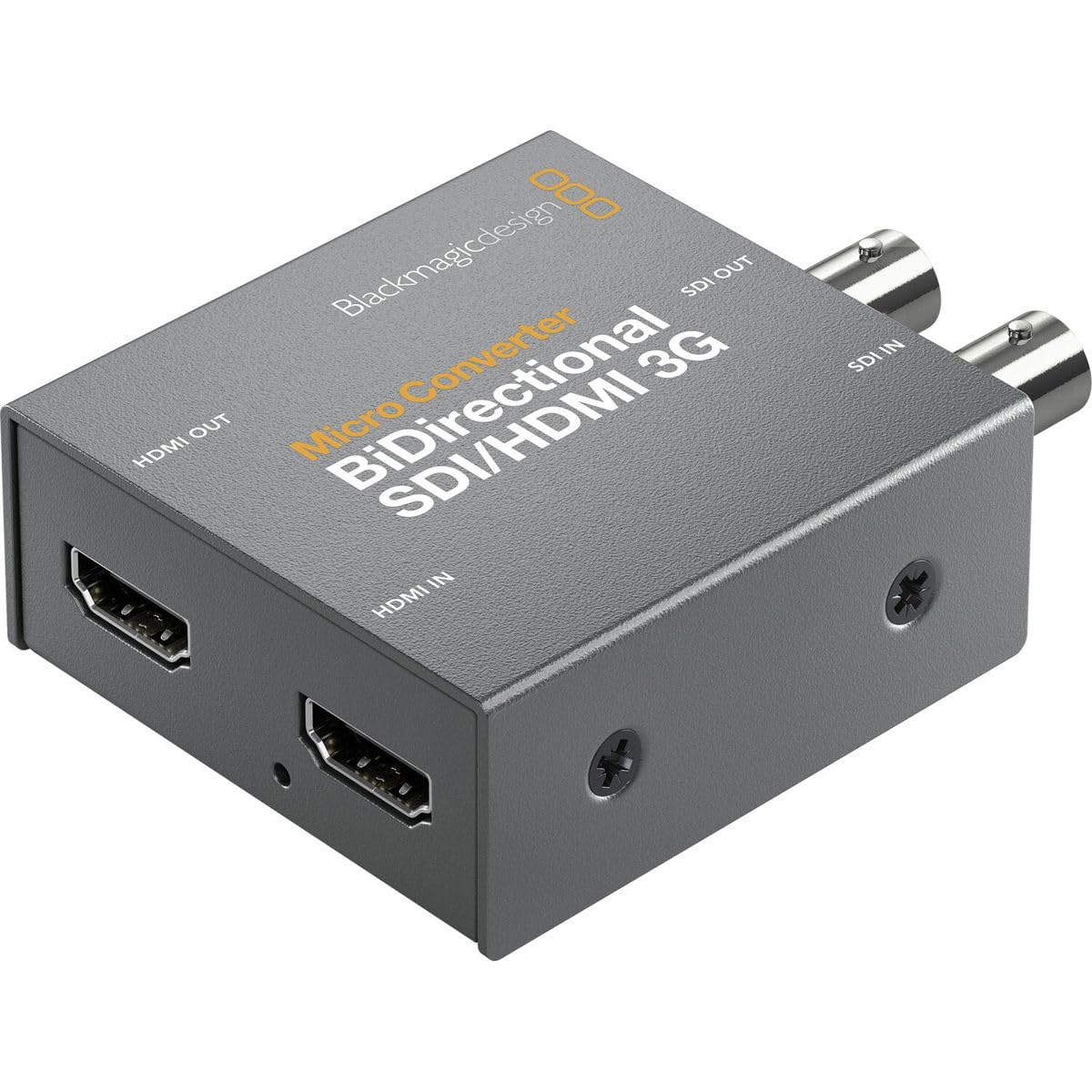

Micro Converter BiDirectional SDI/HDMI 3G
The SDI-to-HDMI bridge for SDI camera feeds and a HyperDeck key-and-fill playback path into the HDMI-only ATEM Mini.

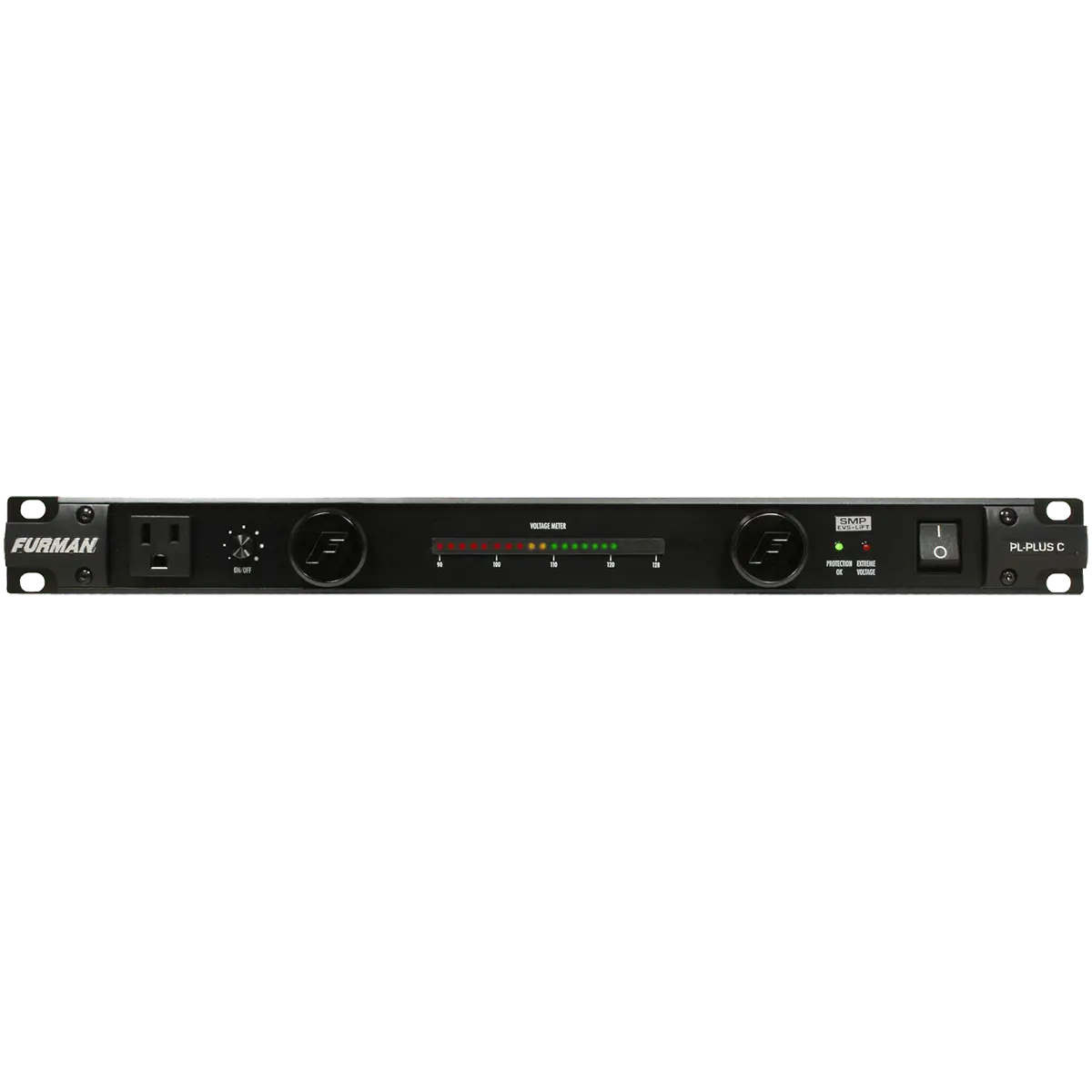

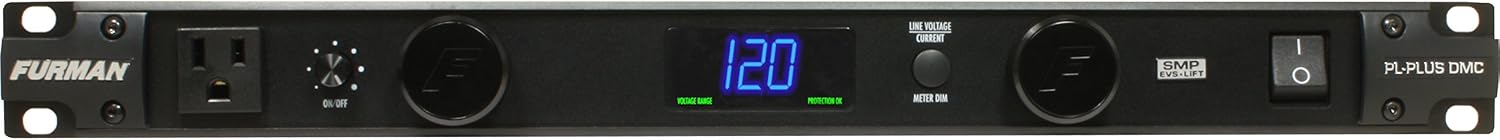

Furman PL-PLUS DMC power conditioner
One place to protect and power the rack. The pull-out work lights make cable checks easier in a dark venue.

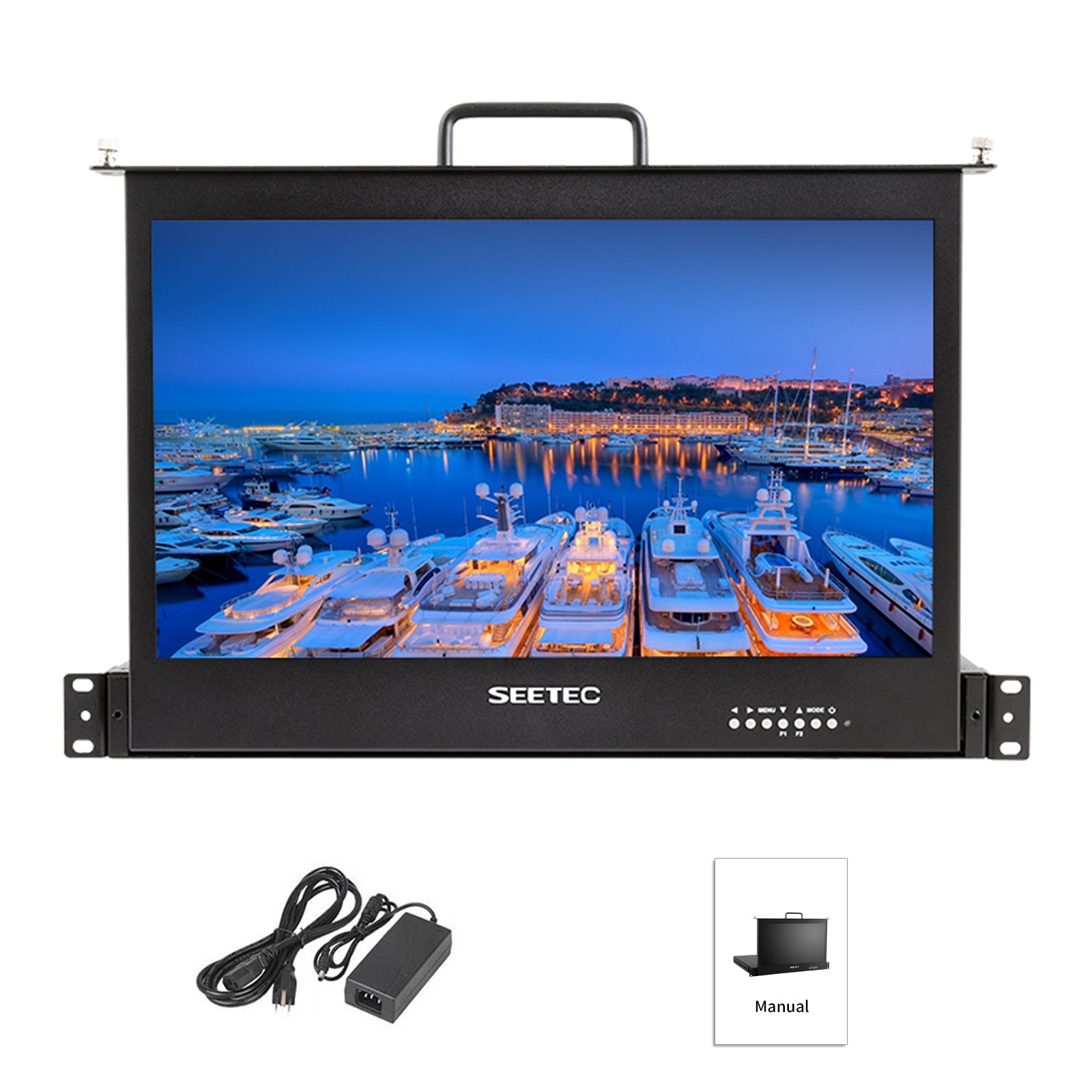

SEETEC SC173-HSD-56 monitor
A 17.3-inch pull-out HDMI and SDI display that gives the fly pack a full multiview without the price of a premium broadcast monitor.
Sources and control
Graphics, guest playback and wireless operation

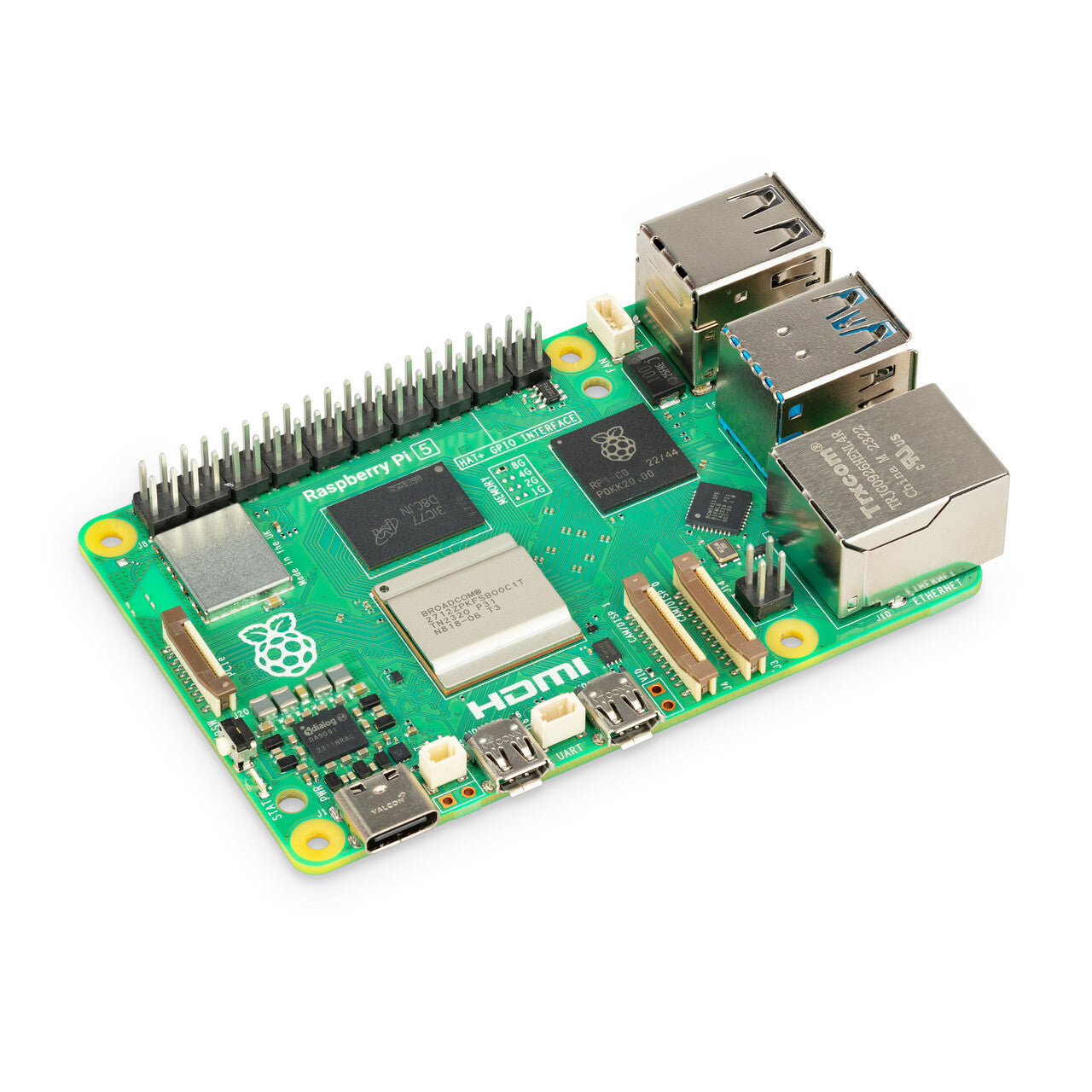

Raspberry Pi
Runs overlays, transitions, graphics and AI-assisted automation. I use a second Pi for the wireless control surface.

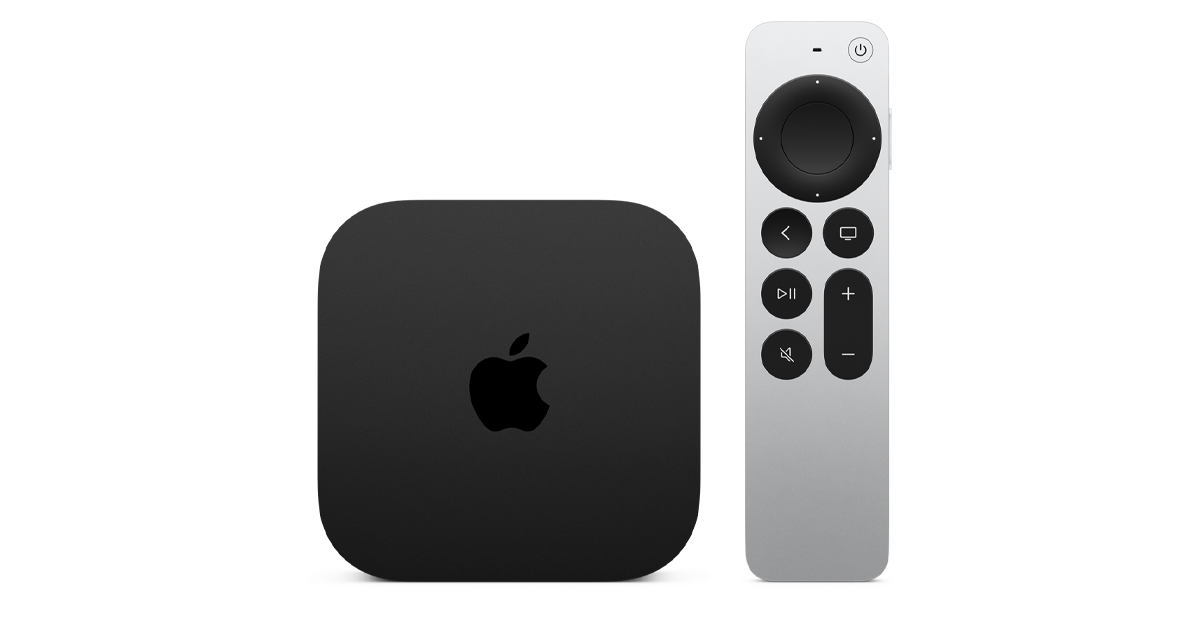

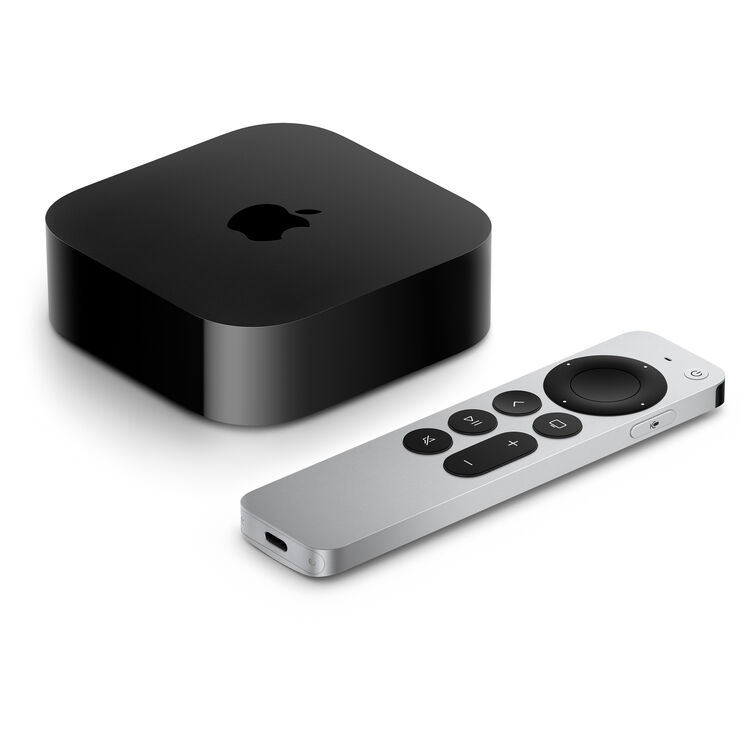

Apple TV 4K
The easy guest-input path. A presenter can AirPlay a phone or laptop and get media into the fly pack without a cable handoff.

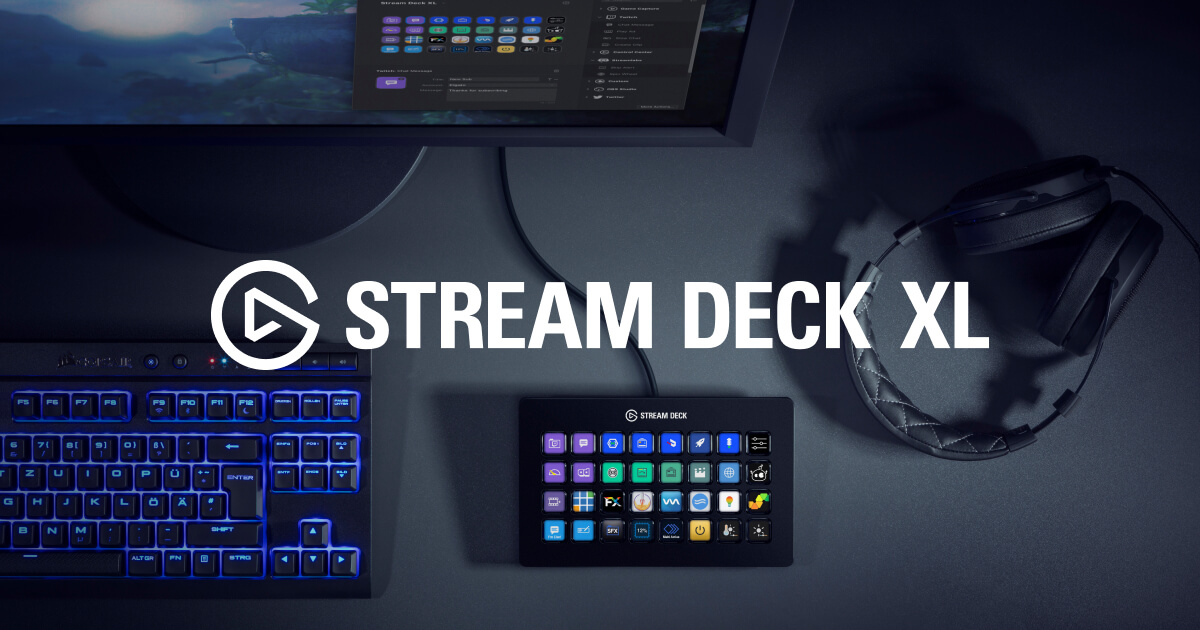

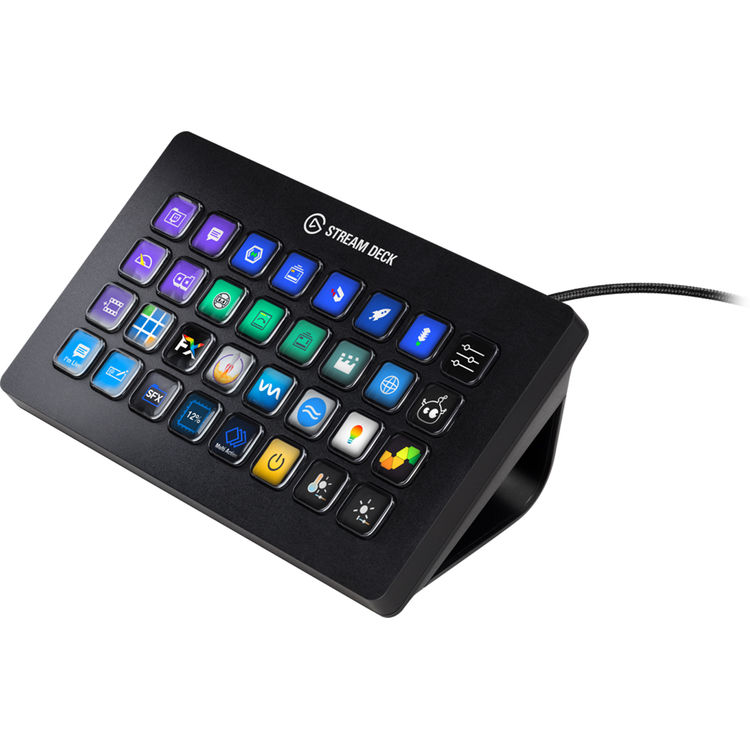

Elgato Stream Deck XL
A Raspberry Pi, battery pack and Bitfocus Companion turn this into a wireless ATEM control surface anywhere in the room.
Connections and transport
Wireless video, cameras, custom I/O and network

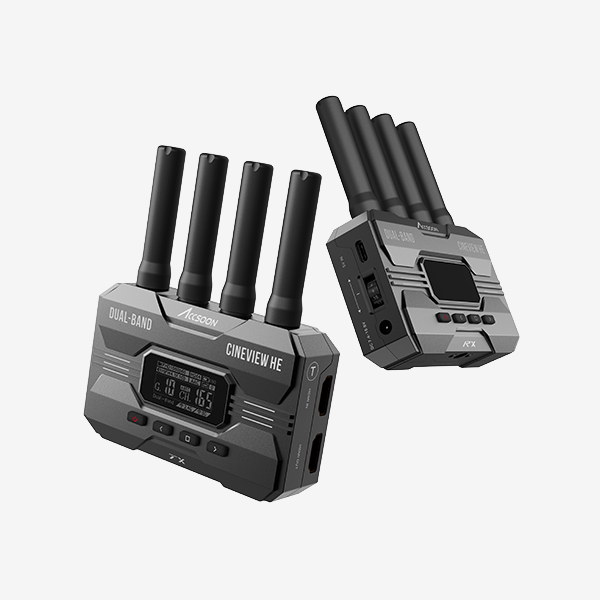

Accsoon CineView HE
Dual-band wireless HDMI for cameras that need freedom to move. It has latency, but it works for my small events, podcasts and conferences.

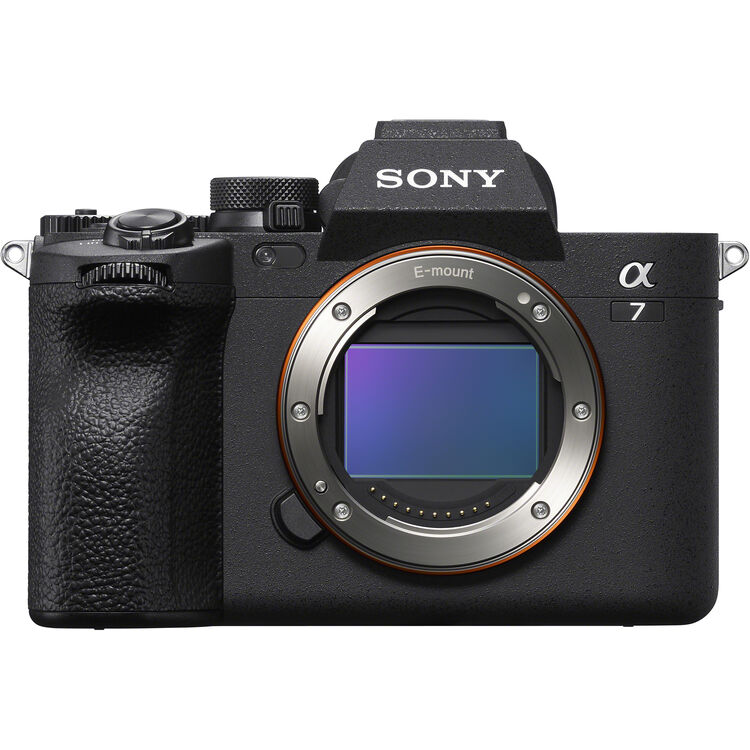

Sony a7 IV
One of the cameras I run into the fly pack. A camera operator used it onstage with the performers while sending video wirelessly.

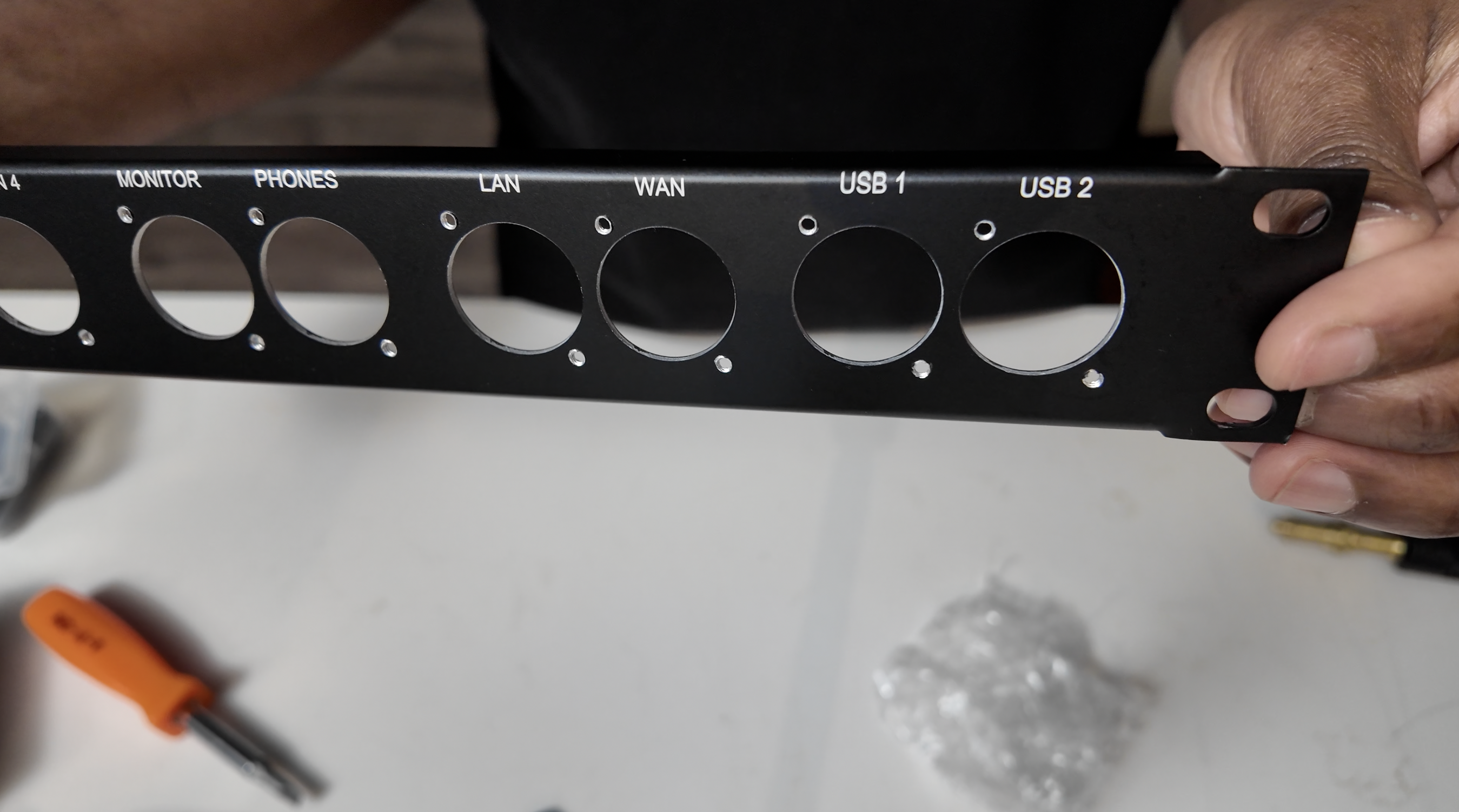

Penn Elcom custom rack panels
All the rack connections in one clean place: HDMI, SDI, monitor out, USB, WAN, LAN and power, built with D-size connector cutouts.

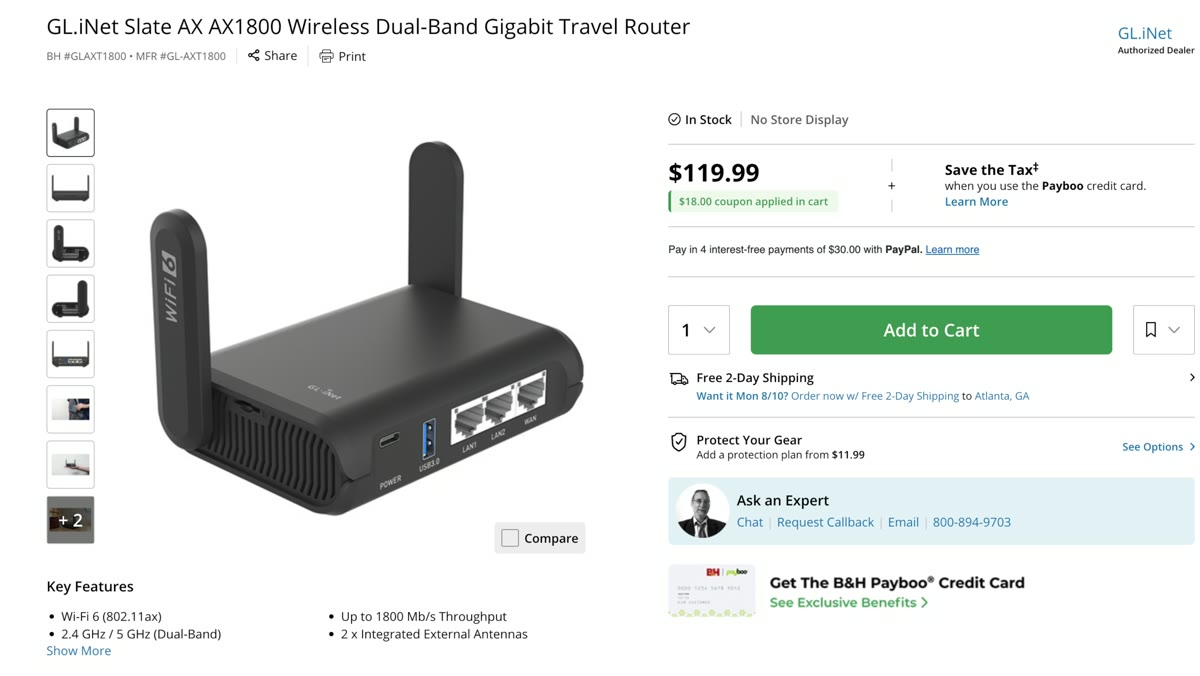

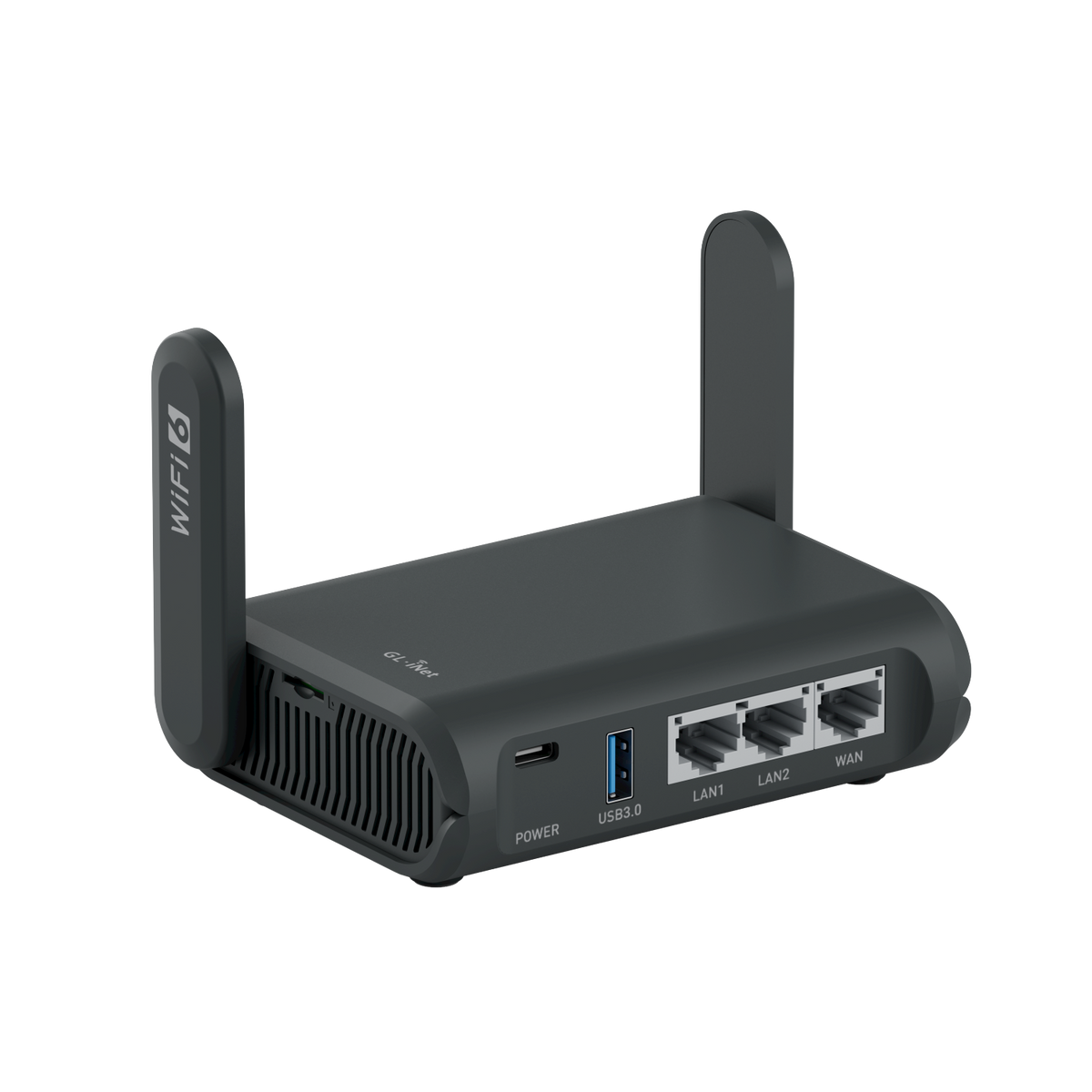

GL.iNet Slate AX router
The local network and internet bridge for the ATEM, HyperDecks, Raspberry Pis and Apple TV. The b-roll shows model GL-AXT1800.

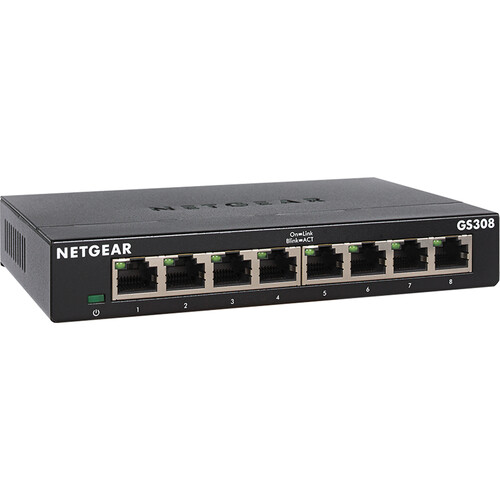

NETGEAR 8-port gigabit switch
The hardwired center of the private rack network, connecting the recorders, switcher, control computers and Apple TV.
The 8U upgrade path
Planned, not installed yet

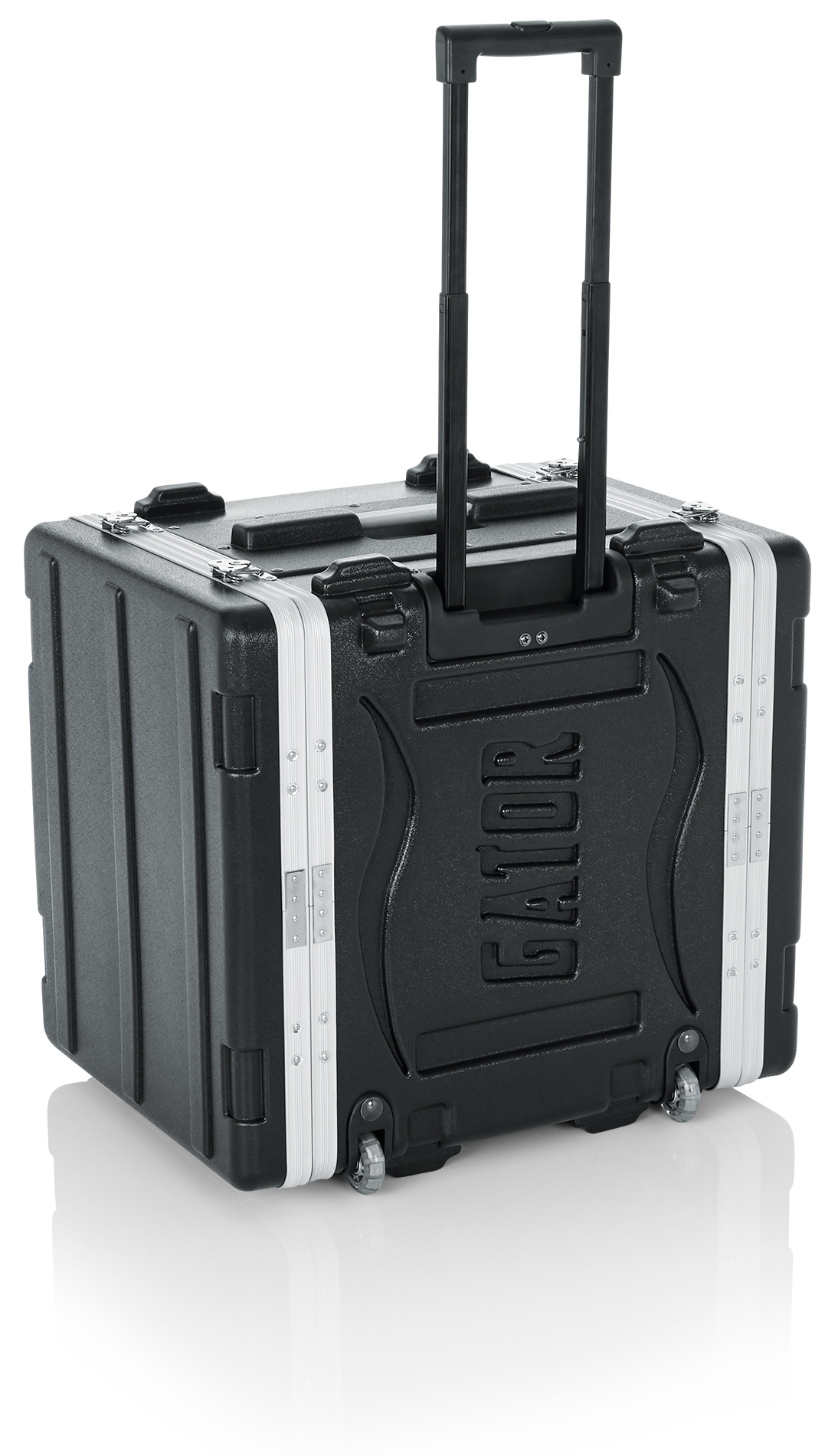

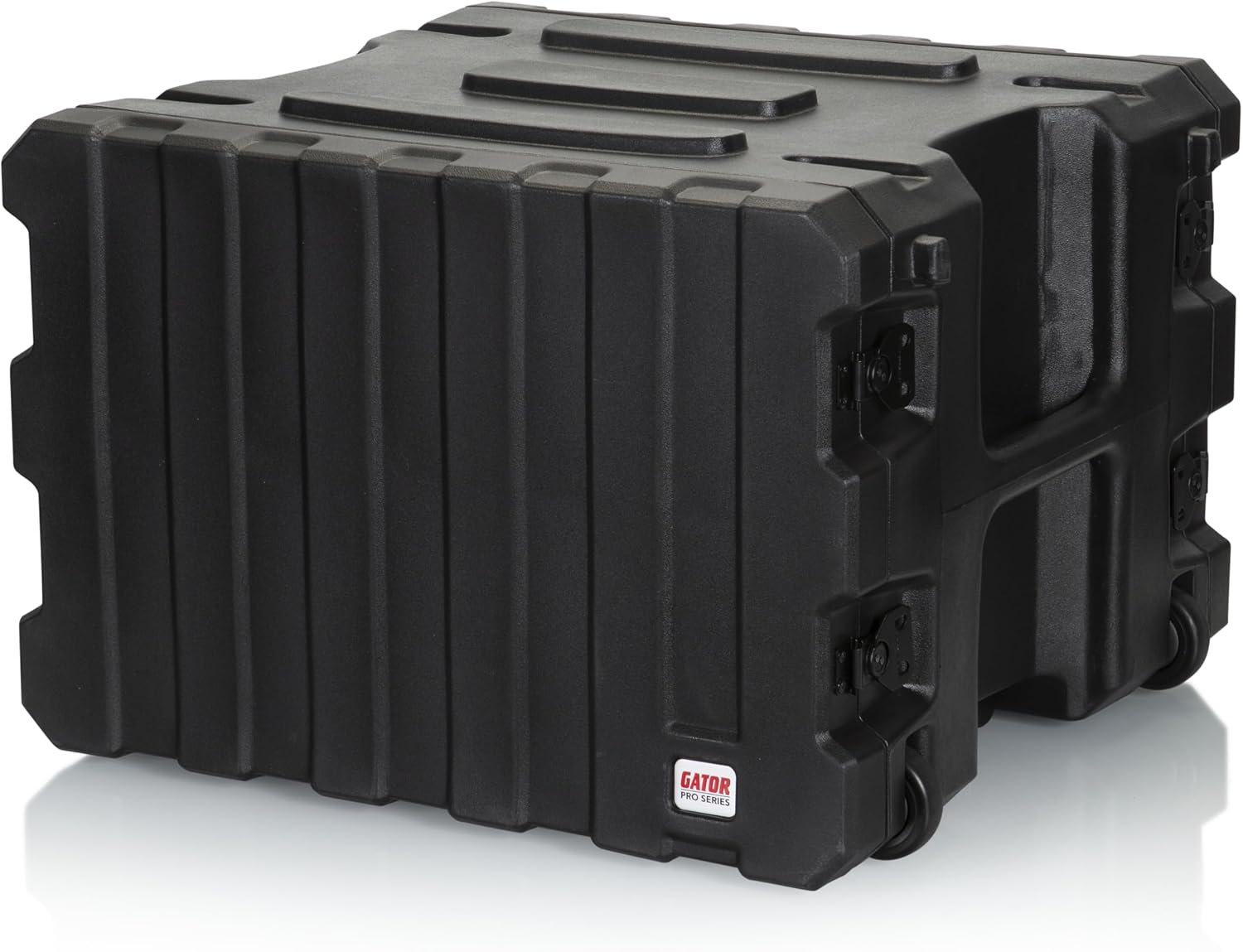

Gator G-PROR-8U-19 rolling 8U rack
The next shell for the build. Two additional rack spaces make room for proper audio management and the larger video workflow.

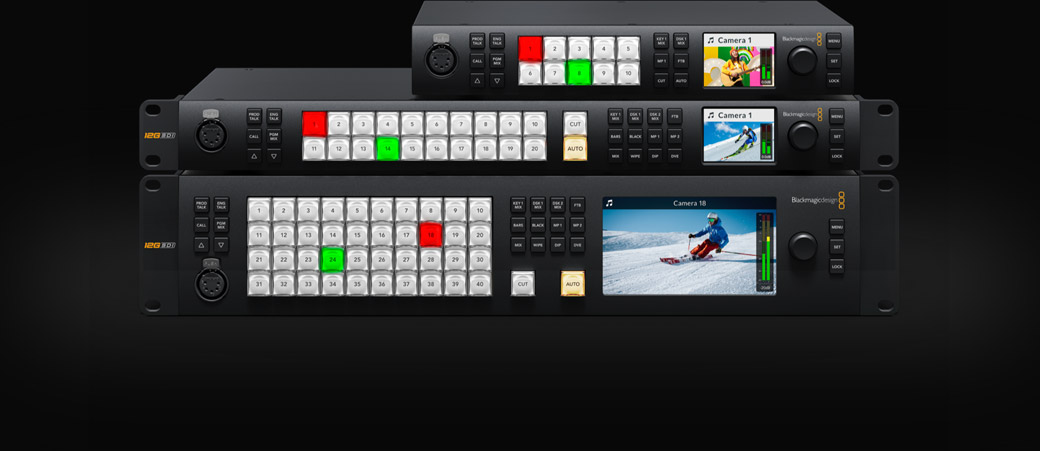

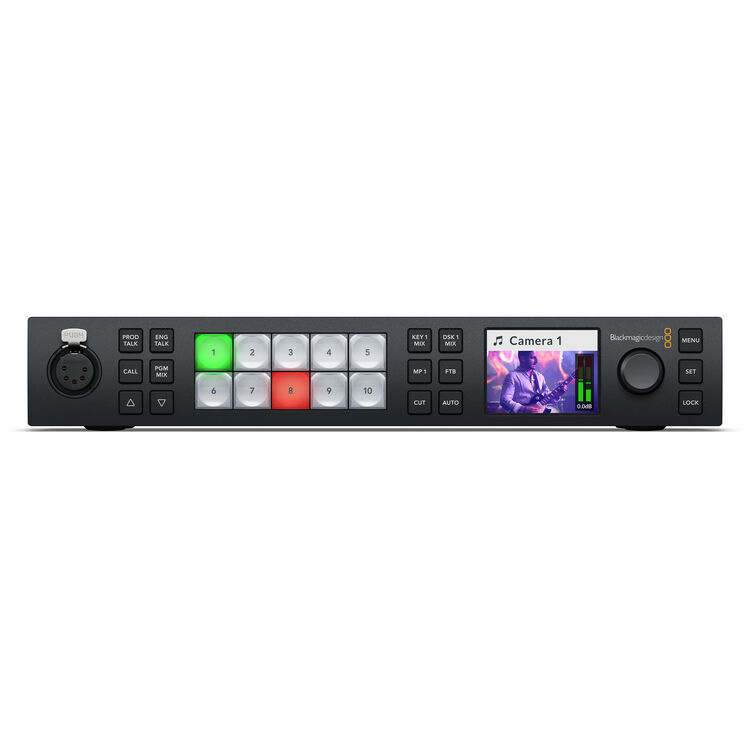

ATEM 1 M/E Constellation 4K
The switcher upgrade I am considering as the workflow grows past what the ATEM Mini is designed to handle.

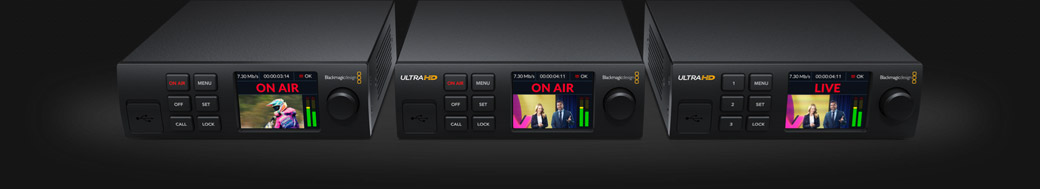

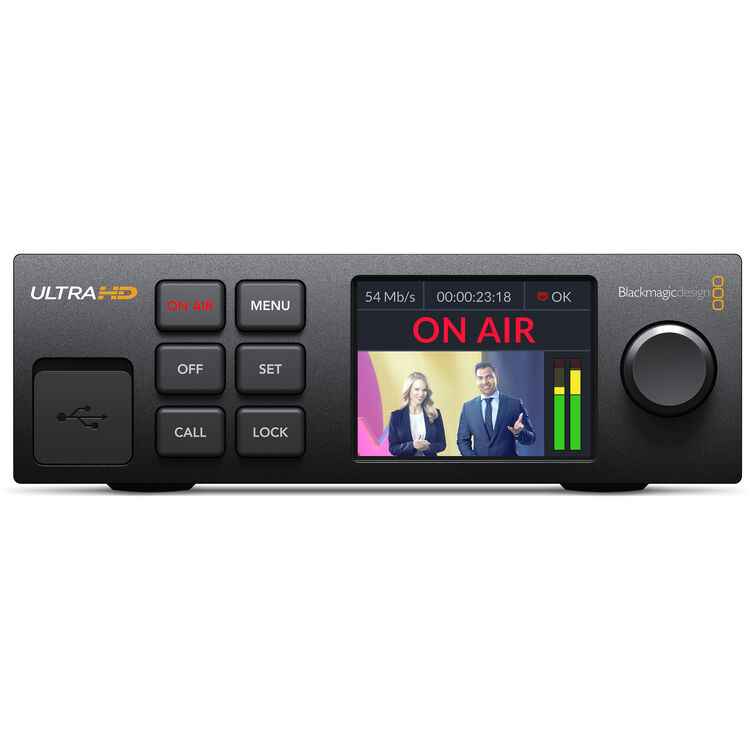

Blackmagic Web Presenter 4K
The dedicated streaming encoder the Constellation build needs to get a finished program feed online.

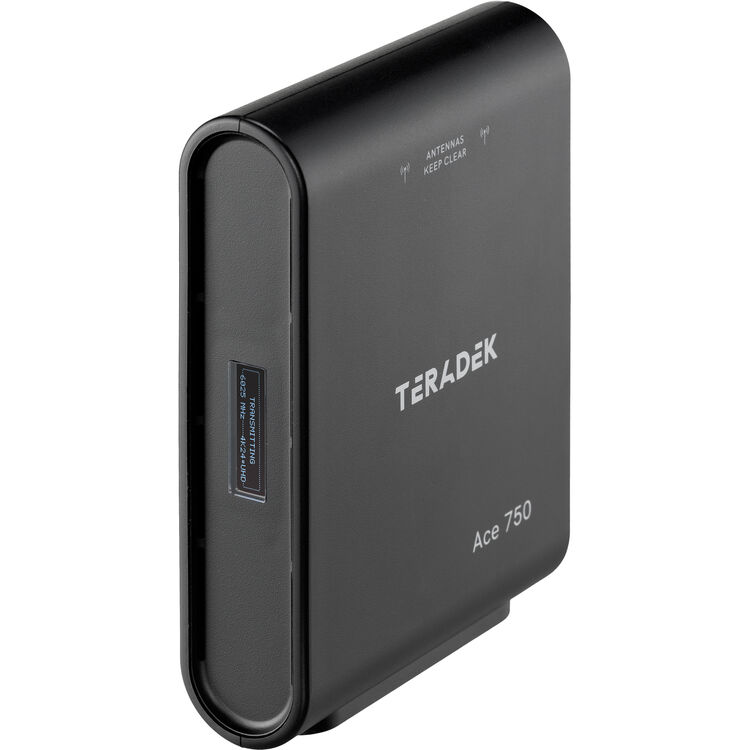

Teradek Ace 750 wireless video transmitter
A low-latency wireless HDMI transmitter I am considering for the next build. Requires a compatible receiver.
Still being chosen
Audio is the open decision.
The 8U rack creates room for proper audio management, but I have not named the exact mixer or professional wireless receiver system yet. Those links will be added when the build is final.
Rack mixerModel not selected
Wireless audio receiversModel not selected
